Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat

Eigenschaften

Technische Daten

Maximale Temperatur: 1800 ℃

Stromversorgung: 220 V 50 Hz

Temperaturregelung: Pid-Selbststeuerung

Ofengröße: 150*150*80 mm, 200*150*150 mm, 300*200*200 mm

Äußere Größe: 735*750*1200 mm, 700*670*930 mm, 750*660*1020 mm

Gewicht: 155 kg, 190 kg, 300 kg

Leistungsbewertung: 3kw, 5kw, 9kw

Temperaturgenauigkeit: ± 1 ℃

Heizrate: 0-30℃/min

Typ des Thermocouples: Typ b

Heizkörper: Silikonmolybdänstange

Anzeigemodus: LED-Display in Farbe

Dichtungsring: Fluorring

Vakuumpumpe: Oil-impulsed-Drehschaufel Van Vakuumpumpe

Ofenmaterial: Polykristalline Keramikfasern mit hoher Aluminiumoxid

Hervorheben:

1800°C lab muffle furnace

PID auto control muffle furnace

220V 50Hz industrial drying oven

Grundinformation

Herkunftsort: Guangdong, China

Zahlung und Versand AGB

Galerie

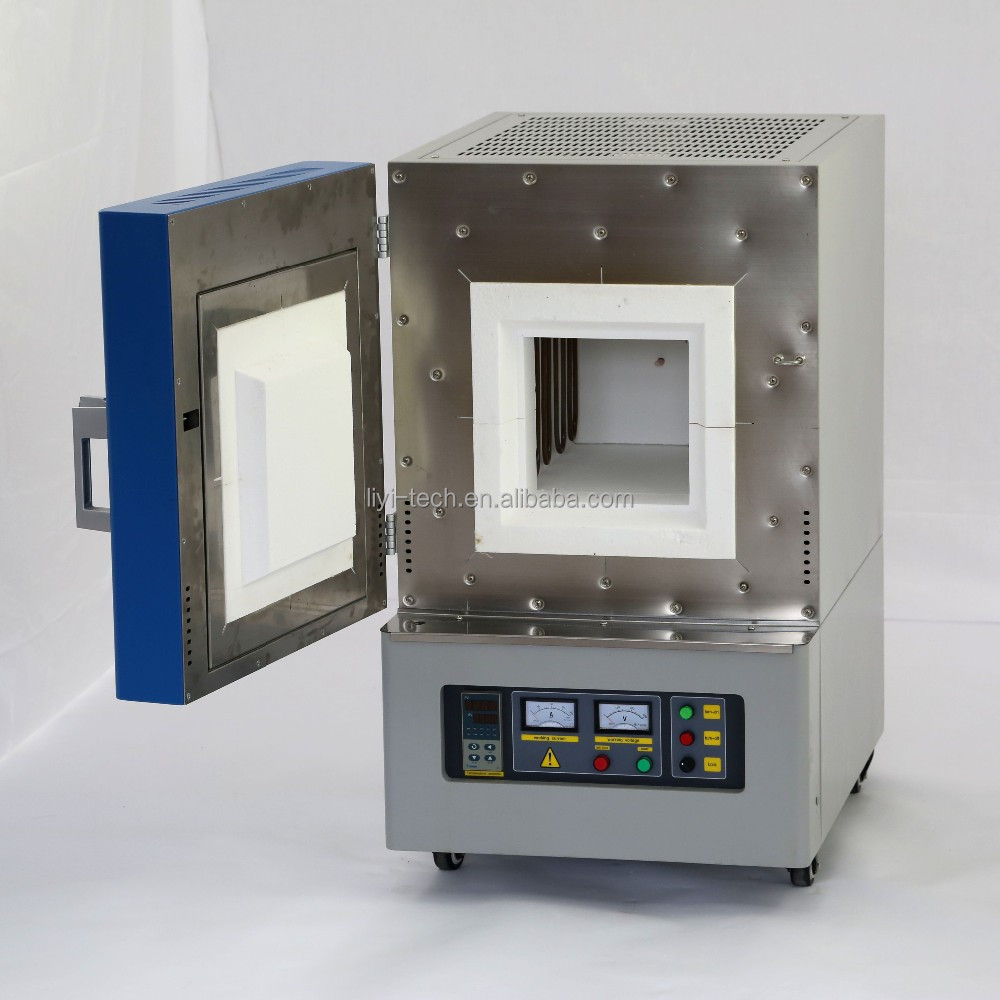

1800°C Muffle Furnace for Lab with PID Auto Control 220V 50Hz

Produkt-Beschreibung

Liyi High Temperature 1800°C Heat Treatment Muffle Furnace

This high-performance muffle furnace is designed for scientific research institutions, universities, and industrial enterprises. It's ideal for high-temperature precision annealing, micro-crystallization, ceramic glaze preparation, mold annealing, powder metallurgy, plastic powder foam testing, nanomaterial sintering, metal part quenching, and other high-temperature heat treatment applications.

Key Features:

Maximum temperature of 1800°C
Temperature control precision of ±1℃
Adjustable heating rate (0-30℃/min)
Silicon molybdenum rod heating elements

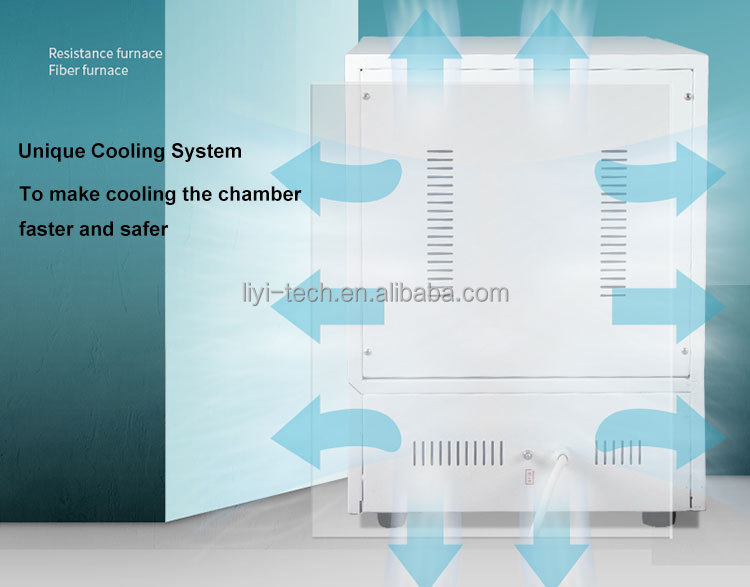

Double-layer forced air-cooling structure

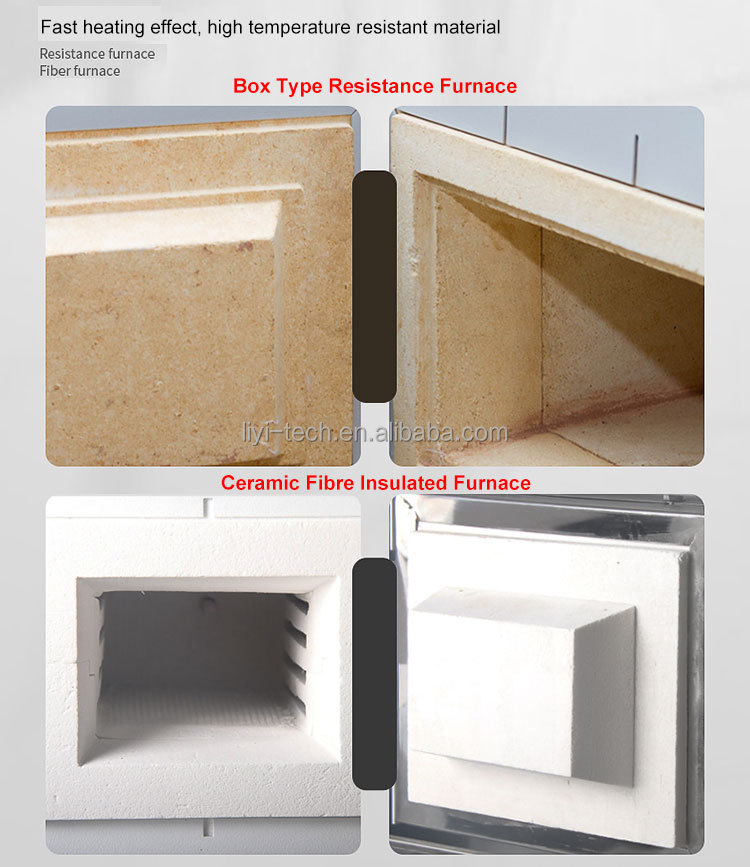

High alumina polycrystalline ceramic fiber construction
Color LED display for easy monitoring

Technical Specifications:

Model	LY-16-17TP	LY-16-18TP	LY-16-19TP
Furnace size (WHD) mm	15015080	200150150	300200200
Outer size (WHD) mm	7357501200	700670930	7506601020
Weight (Kg)	155	190	300
Power rating	3KW	5KW	9KW
Power	220V 50/60HZ
Temperature control precision	±1℃
Maximum temperature	1800℃
Heating rate	0-30℃/min (recommended less than 20℃/min)
Thermocouple	Type B
Heating element	Silicon molybdenum rod

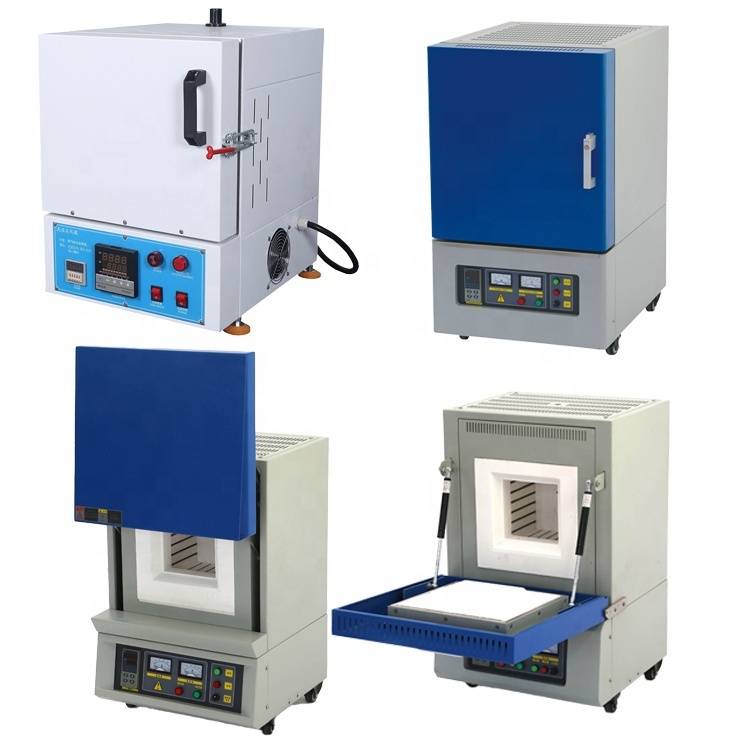

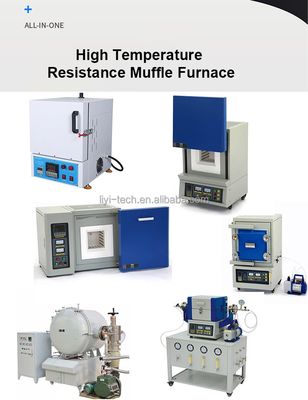

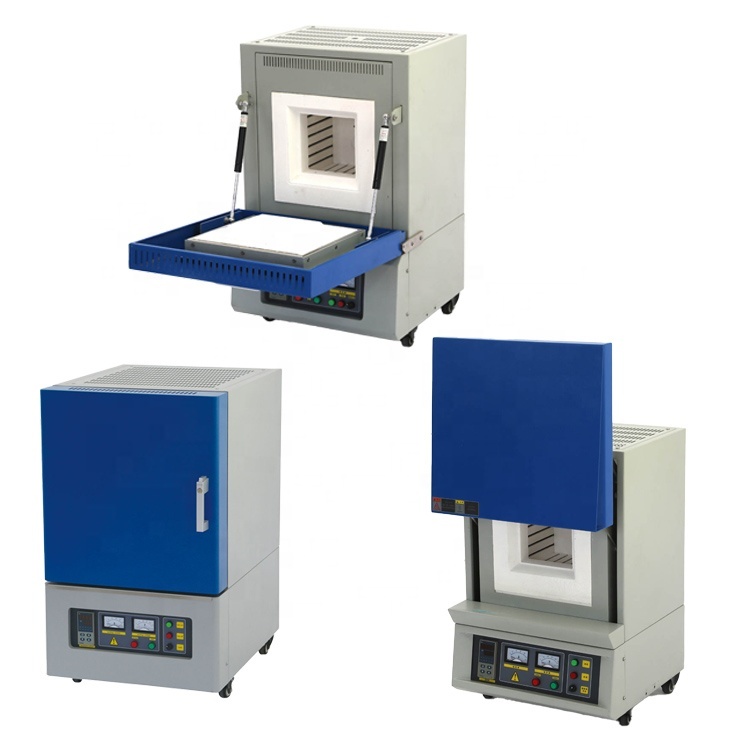

Product Images

About Dongguan Liyi Environmental Technology Co., Ltd

We are a high-tech production-oriented enterprise specializing in developing and manufacturing various environmental equipment. With advanced technology, experienced personnel, and a complete quality management system, we serve customers in over 150 countries and regions.

Our Capabilities:

Manufacturer of environmental chambers, industrial ovens, and testing equipment
Production base located in Dongguan, China's manufacturing center
Eastern China office in Kunshan for better service
Commitment to international testing standards and customer-specific requirements

Frequently Asked Questions

1. Are you the manufacturer? What about after-sales service and warranty?

Yes, we are a professional manufacturer. All machines come with 12 months warranty after shipment (extended to 14 months for sea transportation). We offer free maintenance during warranty period and provide solutions within 24-48 hours for any issues.

2. What's the delivery time?

Standard machines are typically available from stock. For non-stock items, delivery time is 15-20 working days after deposit receipt. Urgent orders can be specially arranged.

3. Do you accept customization and OEM services?

Yes, we offer both standard and customized machines according to your requirements, including OEM/ODM services with your logo.

4. How can I install and use the machine?

We provide English operation videos. Most machines are shipped fully assembled - just connect power to start. We can also assist with on-site installation if needed.
