Eigenschaften

Technische Daten

Genauigkeit: ± 1 ° C

Leistung: 180W

Schutzklasse: IP56

Stromspannung: 220 V, 380 V, 240 V, 110 V

Volumen der Prüfkammer: 108L/270L/600L/1440L oder Sonderanfertigung

Nebelmenge: 1.0~2.0ml/80cm2/h

PH -Bereich: 6,5~7,2, 3,0~3,2

Stromversorgung: 220 V 50 Hz

Prüfkammertemperatur: NSS.ACSS 35°C±1°C/CASS 50°C±1°C

Gesättigte Lufttemperatur: NSS.ACSS 47°C±1°C/CASS 63°C±1°C

Prüfkammergröße: 60*45*40cm, 90*60*50cm, 120*100*50cm, 150*100*50cm, 200*100*50cm

Maximale Flüssigkeitskapazität: 15L, 25L, 40L

Stromverbrauch: AC220V,10A; AC220V,15A; AC220V, 30A

Designstandard: GB/T 10587-2006, GB/T 10125-1997, JIS-D0201, H8502, H8610, K5400, Z2371

Typ der Sprühdüse: Bo Nute-Prinzip

Hervorheben:

IP56 Protection Salt Spray Test Chamber

108L/270L/600L/1440L Capacity Salt Spray Test Chamber

1.0~2.0ml/80cm2/h Spray Quantity Salt Spray Test Chamber

Grundinformation

Herkunftsort: Guangdong, China

Markenname: Liyi

Zahlung und Versand AGB

Galerie

IP56 Protected Salt Spray Test Chamber with 108L/270L/600L/1440L Capacity and 1.0~2.0ml/80cm2/h Spray Quantity

Produkt-Beschreibung

Liyi Salt Fog Corrosion Testing Machine / Salt Spray Ageing Chamber / Salt Mist Resistance Tester

The Liyi Salt Fog Corrosion Testing Machine is designed to evaluate the corrosion resistance of iron metals and their coatings, including electroplating, anodized finishes, conversion coatings, and painted surfaces. This accelerated corrosion testing chamber helps predict the protective finish's suitability by producing controlled corrosive attacks on test samples.

Key Features

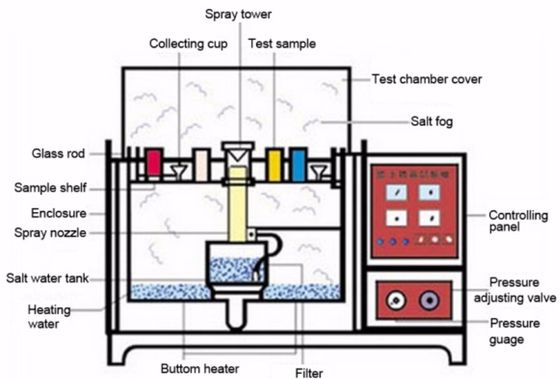

Advanced spray nozzle system based on the Bo Nute Principle, converting saline water into fine atomization without crystallization
Precision digital microcomputer controller for accurate temperature regulation
Comprehensive display showing temperature, humidity, pressure, spray capacity, and test duration
Complies with international testing standards for global acceptance

Technical Specifications

Model	LY-609-60	LY-609-90	LY-609-120	LY-609-150	LY-609-200
Design Standard	GB/T 10587-2006, GB/T 10125-1997, JIS-D0201, H8502, H8610, K5400, Z2371
Test Chamber Capacity (L)	108L	270L	600L	750L	1000L
Temperature (Test Chamber)	NSS/ACSS: 35°C±1°C \| CASS: 50°C±1°C
Temperature (Saturated Air Cylinder)	NSS/ACSS: 47°C±1°C \| CASS: 63°C±1°C
Test Chamber Size (L×W×D cm)	60×45×40	90×60×50	120×100×50	150×100×50	200×100×50
Max Capacity of Test Liquid (L)	15	25	40	40	40
Power	AC220V,10A	AC220V,15A	AC220V,30A	AC220V,30A	AC220V,30A

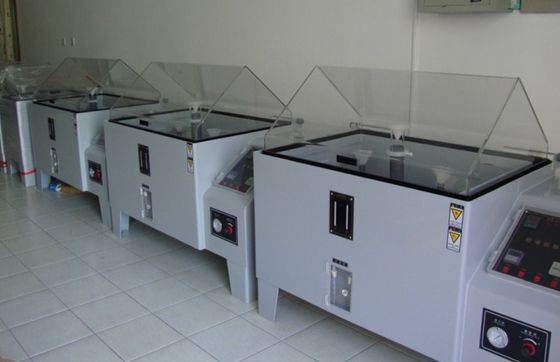

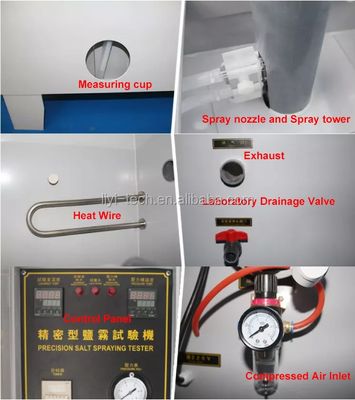

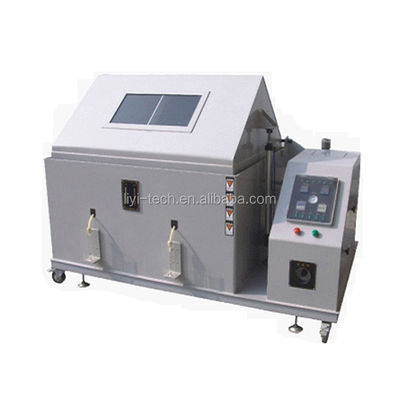

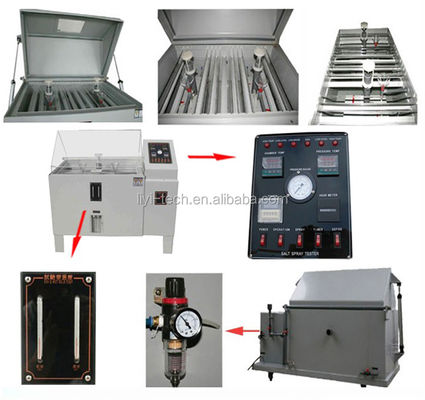

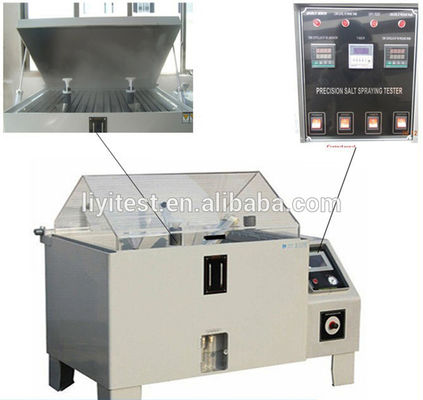

Product Images

Company Profile

Dongguan Liyi Environmental Technology Co., Ltd is a high-tech production-oriented enterprise specializing in developing, manufacturing, and marketing various environmental testing equipment. With advanced technology, experienced personnel, and a comprehensive quality management system, we serve customers in over 150 countries.

Our product range includes simulated environmental testers, plastic and rubber testers, and other material testing equipment. Based in Dongguan, China's manufacturing hub, we maintain a satellite office in Kunshan to better serve our Eastern China customers.

Frequently Asked Questions

Are you the manufacturer? What about after-sales service and warranty?

Yes, we are a professional manufacturer of environmental testing equipment. All machines come with a 12-month warranty (extended to 14 months for overseas shipments). We provide free maintenance during warranty and offer technical support via email or video chat, with solutions typically provided within 24-48 hours.

What's the delivery time?

Standard machines are typically available from stock. For non-stock items, delivery time is 15-20 working days after deposit receipt. We can expedite production for urgent orders.

Do you accept customization and OEM services?

Yes, we offer both standard and customized machines according to customer requirements, including OEM/ODM services with your logo on the equipment.

How do I install and use the machine?

Most machines are shipped fully assembled - just connect the power cable to begin operation. We provide English operation videos via email, and can assist with on-site installation if required.
